Connect qibb with your services within private networks
qibb provides a range of integration options for connecting with your data and services located in your private networks, including on-premises or network-isolated cloud environments.
Description | Diagram | ||
|---|---|---|---|
| 1 | Firewall IP Whitelisting Expose your endpoints with your firewall. STANDARD PREMIUM ULTIMATE | If you have the capability to make your services accessible to specific IPs from external sources, we can provide you with a list of qibb IPs belonging to your account. This list can then be utilized for firewall whitelisting on your end, allowing ingress traffic into your infrastructure. Regardless of the qibb subscription tier, each customer is allocated to a dedicated set of static IPs for outgoing traffic (Public NAT Gateway), which is then shared among the deployed qibb flows. This streamlines the process of firewall whitelisting for you, as qibb IPs remain unchanged and are reused even when setting up multiple new flows. For ULTIMATE Subscribers: With a qibb Ultimate subscription, you can choose to keep all network traffic internal within your hybrid cloud infrastructure, eliminating the need for routing through the public internet. qibb facilitates this by enabling the deployment of internal load balancers, private NAT gateways, and dedicated network connections of the individual cloud providers. |  |
| 2 | Network Agent Utilize a light-weight agent which creates a secure network tunnel. STANDARD PREMIUM ULTIMATE | If you prefer not to implement firewall whitelisting in your infrastructure, you have the option to leverage the qibb's network agent. This agent serves as a lightweight agent service that you can deploy yourself within your infrastructure. It functions by establishing an outbound connection with qibb and then directing traffic from external flows to your internal services. Unlike VPN, this approach ensures that only the specified endpoints are accessible, enhancing security. Additionally, it is straightforward to set up and does not necessitate any modifications to your network configuration. Contact our team to learn more about the qibb's network agent. |  |

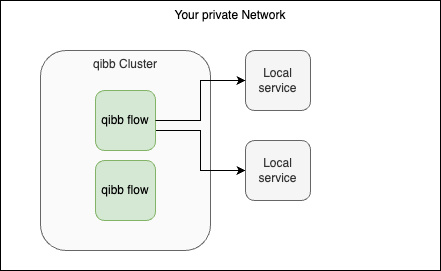

| 3 | On-premises Cluster Run flows directly in your infrastructure on top of highly resilient, dedicated clusters. PREMIUM * ULTIMATE * Requires Custom Deployment Option in Subscription | Run qibb flows on dedicated Kubernetes clusters that can be deployed in your cloud or on-premise infrastructure, which gives you complete control over the network and location of services. This option is exclusively available as part of our custom deployment options and necessitates the assistance of the qibb Team to set up the clusters within your infrastructure. Learn more about the Multi-Cluster capabilities of qibb here: |  |
