Quortex I/O ingests your live source and will deliver it anywhere globally, in any resolution, with any number of video and audio profiles, and with unprecedented video quality. Use the nodes to launch channels, reconfigure them on the fly, gather analytics, schedule shutdowns, and get billing information.

You can find more details about these nodes as well as a list of supported operations on Quortex | qibb Catalog.

How to get started with Quortex integration

Before you get started using Quortex integration please make sure that you have the needed permission for the operations.

  1. All these Quortex APIs can be used with an access token.

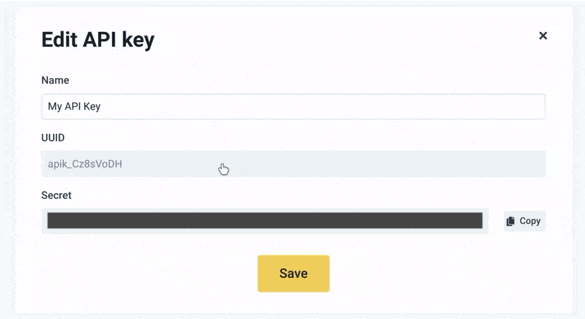

  2. The first API key needs to be generated through the application web interface, in the "Organization" menu. Each API key is associated with an "api_secret", then used to generate a token that is then passed as an authentication bearer to all subsequent API calls.

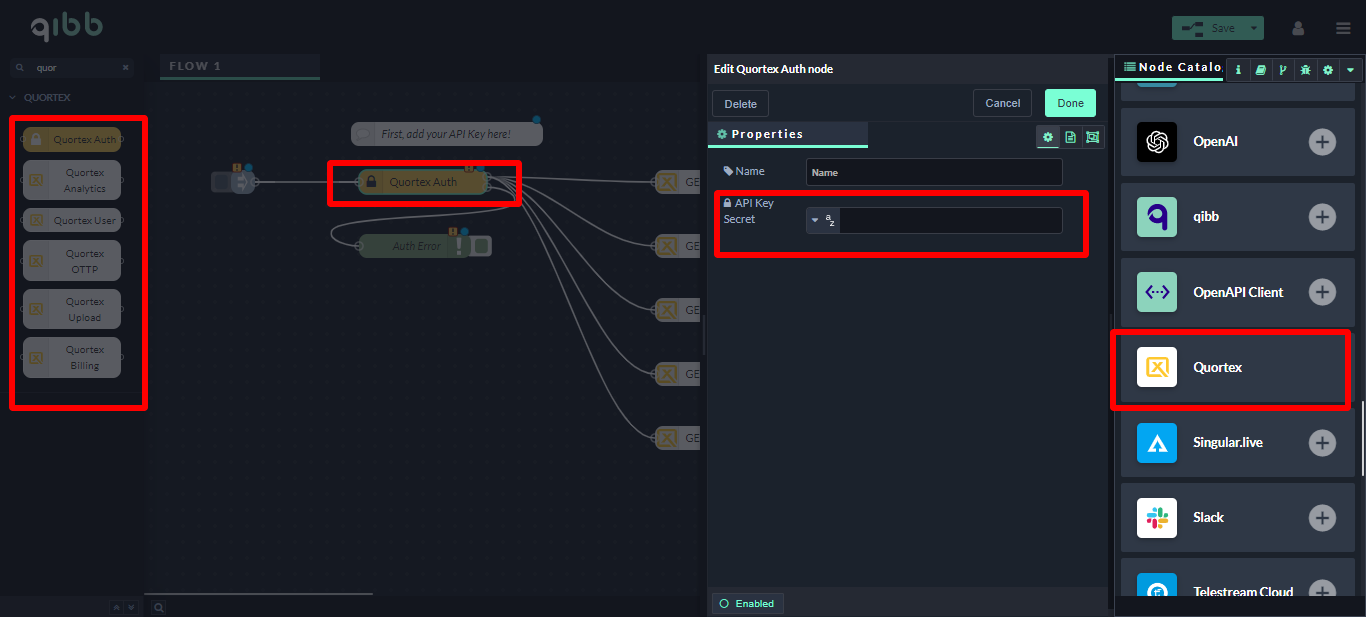

  3. Go to qibb Workflow Editor, open Node Catalog in the right sidebar, and install Quortex node by clicking on the + button.

  4. Drag the Quortex Auth node and any other of the Quortex API nodes (Analytics, User, OTTP, Upload, Billing) nodes from the left sidebar to your flow and connect them.

  5. Enter your API Key to API Key Secret field of the Quortex Auth node and start using the integration!


Importing flow examples of a node

Once you've successfully installed a node from the qibb catalog, you can easily import example flows that showcase how the nodes can be used. These example flows are directly accessible within the Flow Editor and are designed to guide users with helpful hints, including how to configure mandatory parameters and credentials.

Here's how to import examples:

  1. In the top right corner of the Flow Editor, click on the menu icon.

  2. Select Import to open the Import Dialog.

  3. Click on the Examples tab.

  4. Choose an example from the list.

  5. Confirm your selection by clicking on the Import button.

By following these steps, you are now ready to make basic API calls using the provided examples. For further exploration of what’s possible, you can find more complex examples in the Flow Catalog.
