Tableau is a data visualization and business intelligence tool used to analyze and present data in a visually appealing manner. It allows users to connect to various data sources and transform raw data into meaningful insights. With its intuitive drag-and-drop interface, users can easily create interactive dashboards, charts, and reports.

Tableau provides a wide range of data visualization options, including bar charts, maps, scatter plots, and more, enabling users to explore data from different angles.

You can find more details and the supported operations at Tableau | qibb Catalog.

How to get started with Tableau integration

Before you get started with Tableau integration, please make sure that you have the needed permissions for those operations.

  1. To authenticate, you will need a Username, Password, Server URL and API Version.

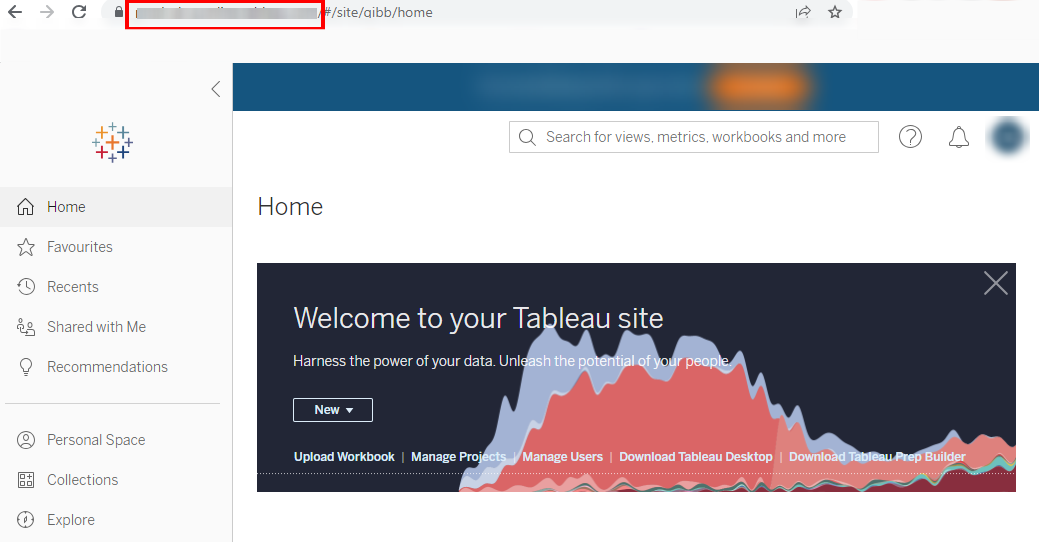

  2. You can find your Server URL, when you log in to your Tableau Cloud Dashboard.

  3. The current API Version is 3.20. Here you can find more information and updates about the API versions: REST API and Resource Versions

  4. Go to qibb Workflow Editor, open Node Catalog in the right sidebar, and install Tableau node by clicking on the + button.

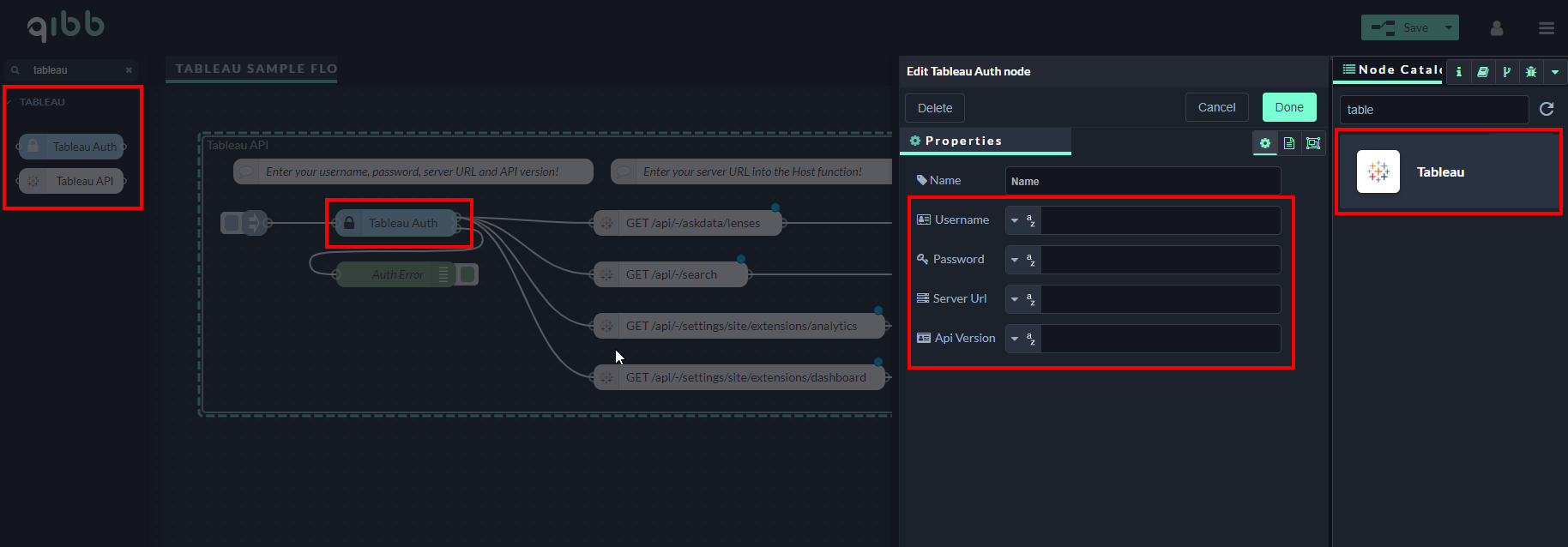

  5. Drag and drop the Tableau Auth and Tableau API nodes from the left sidebar into your flow, and connect them.

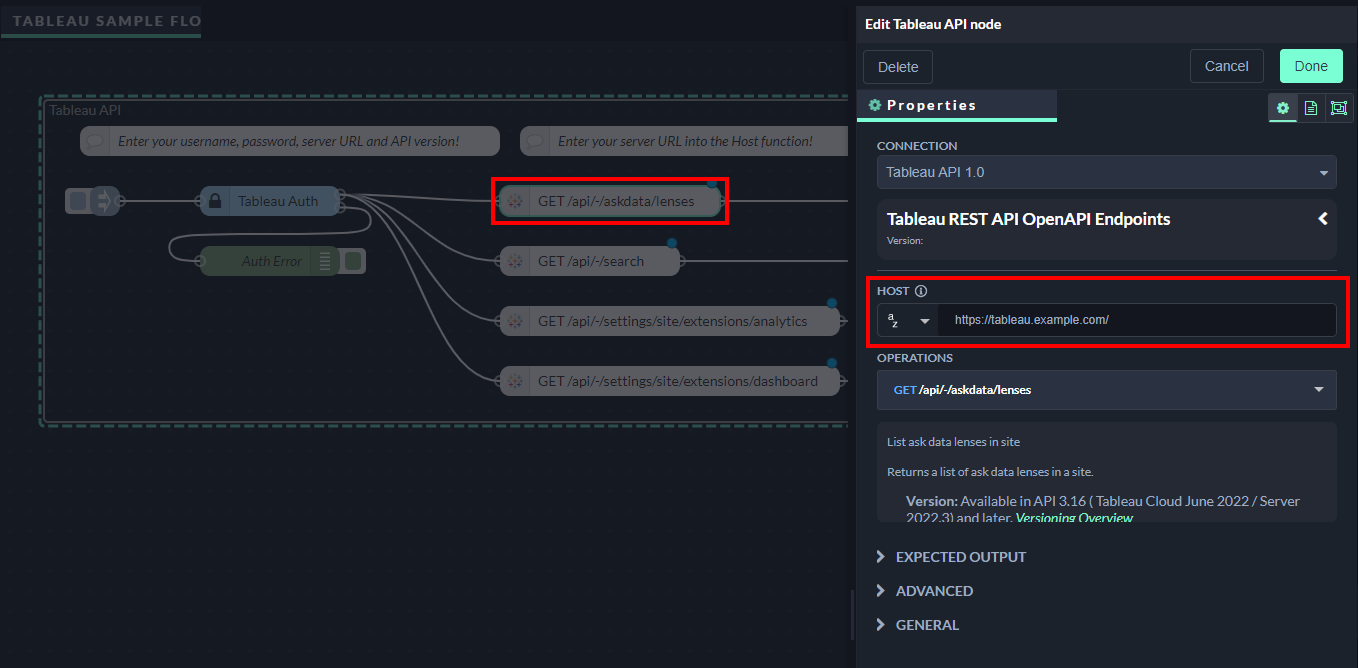

  6. Enter your credentials into the Username, Password, Server URL and API Version fields of the Tableau Auth node, then your Server URL into the Host field of the Tableau API node and start using the integration!

Importing flow examples of a node

Once you've successfully installed a node from the qibb catalog, you can easily import example flows that showcase how the nodes can be used. These example flows are directly accessible within the Flow Editor and are designed to guide users with helpful hints, including how to configure mandatory parameters and credentials.

Here's how to import examples:

  1. In the top right corner of the Flow Editor, click on the menu icon.

  2. Select Import to open the Import Dialog.

  3. Click on the Examples tab.

  4. Choose an example from the list.

  5. Confirm your selection by clicking on the Import button.

By following these steps, you are now ready to make basic API calls using the provided examples. For further exploration of what’s possible, you can find more complex examples in the Flow Catalog.
