TAG MCM-9000


This node integrates TAG Video Systems' MCM-9000, which is a software based IP monitoring solution combined with a state of the art IP Multiviewer for all broadcast layers to include un-compressed 2022-6/7 & 2110; JPEG2000 TR-01; MPEG2/4/HEVC Transport Streams, and OTT. Use this node to control MCM-9000 features, functionalities, and configurations, including real-time manipulation and automation of video channels, layouts, and Mosaics.

The MCM-900 provides a complete monitoring solution for all the transmission layers starting from the TS packet header all the way down to the encoded video content and quality. In addition, MCM-9000 creates a visual mosaic from the monitored services with rich data overlay, supplying the operator with a strong tool for error detection and alerting.

You can find more details and the supported operations at TAG MCM-9000 | qibb Catalog.

How to get started with TAG MCM-9000 integration

Before you get started with the TAG MCM-9000 integration, please make sure that you have the needed permissions for those operations.

  1. You need a Host URL, a Username and a Password for authentication.

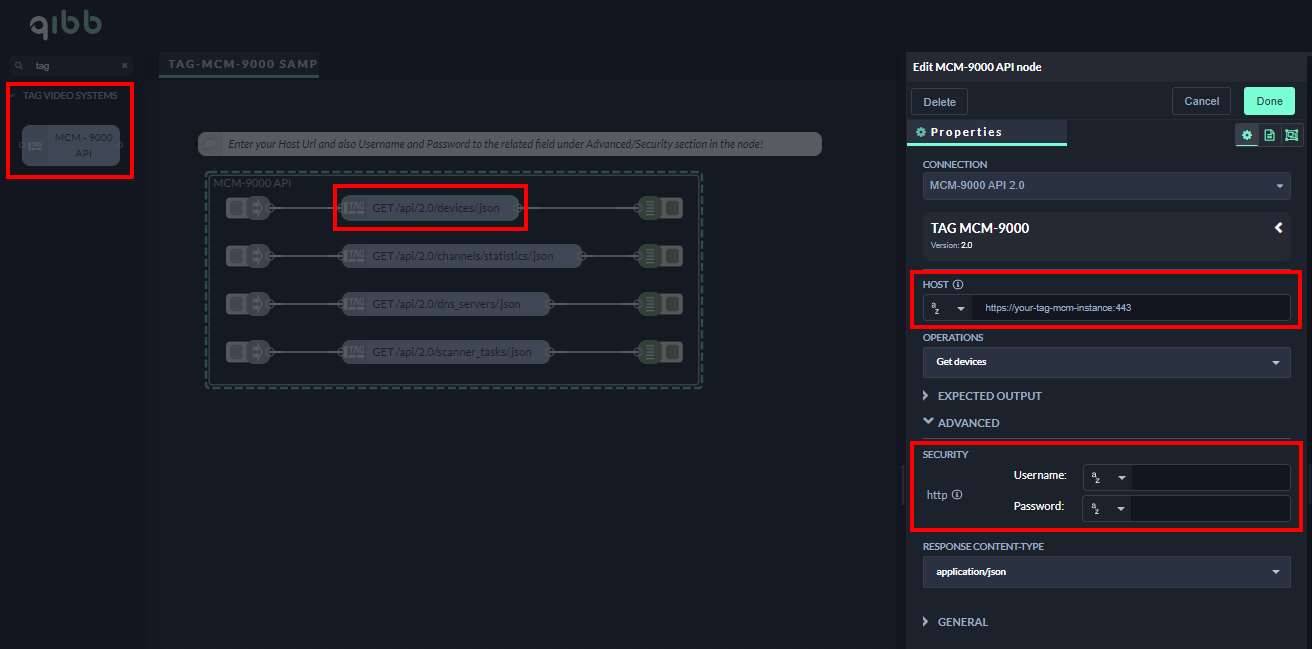

  2. Go to the qibb Workflow Editor, open the Node Catalog in the right sidebar, and install TAG MCM-9000 node by clicking on the + button.

  3. Drag the MCM-9000 API node and any other nodes you require from the left sidebar to your flow and connect them.

  4. Enter your Host URL in the Host field as well as your Username and Password in the Advanced/Security field of the node and start using the integration.

Importing flow examples of a node

Once you've successfully installed a node from the qibb catalog, you can easily import example flows that showcase how the nodes can be used. These example flows are directly accessible within the Flow Editor and are designed to guide users with helpful hints, including how to configure mandatory parameters and credentials.

Here's how to import examples:

  1. In the top right corner of the Flow Editor, click on the menu icon.

  2. Select Import to open the Import Dialog.

  3. Click on the Examples tab.

  4. Choose an example from the list.

  5. Confirm your selection by clicking on the Import button.

By following these steps, you are now ready to make basic API calls using the provided examples. For further exploration of what’s possible, you can find more complex examples in the Flow Catalog.
